Features:Strong conductivity, wear resistance, low temperature resistance, non-magnetic, high conductivity, impact and no sparks, etc., and has excellent heat resistance, fatigue resistance, and corrosion resistance Application:Electronic connectors, thermostats, electrical connectors, micro-motor brushes, various high-performance switches, contacts, contact bridges, springs, clips, washers, membranes, diaphragms, bolts, screws and high-performance shrapnel.
Date: 2025-September-15 Hits：111
Add to compare
Features:Strong conductivity, wear resistance, low temperature resistance, non-magnetic, high conductivity, impact and no sparks, etc., and has excellent heat resistance, fatigue resistance, and corrosion resistance
Application:Electronic connectors, thermostats, electrical connectors, micro-motor brushes, various high-performance switches, contacts, contact bridges, springs, clips, washers, membranes, diaphragms, bolts, screws and high-performance shrapnel.
BE(Beryllium）
CO(Cobalt）
Other
CU(Copper)
1.8-2.1
0.45
≤0.3
Margin
Density g∕cm3
Tensile Strength Mpa
Yield Strength Mpa
Conductivity IACS%
Elongation%
Hardness
Thermal Conductivity W∕m.
Softening Temperature （℃)
8.3
1100
1035
18
1
HRC38-44
105
930
Product Code
Product Name
Supply Specifications (Diameter/Thickness mm)
Supply Specifications (Length And Width mm)
Product Form
C17200
Beryllium Copper Plate
8-260
300*500
Casting And Forging Sheet (NGK)
C17200
Beryllium Copper Rod
Ф6-Ф50
1000
Extruded Bar (NGK)
C17200
Beryllium Copper Rod
Ф51-Ф220
500
Casting And Forging Bars
C17200
Beryllium Copper Wire
Ф0.06-Ф4.0
Unlimited Or 2000
Extruded Bar
C17200
Beryllium Bronze Pipe
The Wall Thickness Is Above 8MM
Less than 300
Casting Pipe Material
C17200
Beryllium Copper Shaped
According To Customer Dawings
According To Customer Dawings
Casting Special-shaped Materials
C17200
Beryllium Copper Strip
0.06-1.0
200*unlimited
Calendered Strip Material (Made In China)
C17200
Beryllium Copper Strip
0.06-0.8
400*unlimited
Calendering tape (Japan NGK)
China Wonder Copper specializing in the production of machining beryllium copper sheet,beryllium copper rod, beryllium copper platoon, beryllium copper strip, beryllium copper pipe, beryllium copper clad aluminum busbar,profiles and so on.various products, Can be customized according to customer requirements. More than 35 years of metal production export experience. Products exported to Europe and the United States, the Middle East, Africa, Asia and other regions. Our success is in serving our customers, through our service minded employees and having material readily available for prompt accurate deliveries. Our longevity and expertise is why we call ourselves “The Beryllium Copper Specialists”. It is our mission “to serve our customers courteously and enthusiastically through prompt and accurate delivery of quality products.” Included in our 30,000 square foot warehouse,WONDER Copper Ltd. maintains a very diversified inventory of Beryllium Copper And Other Copper Alloy. We are fully equipped to handle all your needs. For emergency orders 24/7,Email info@wonders-group.com. We live by our motto: “Truth, Quality and Service.”

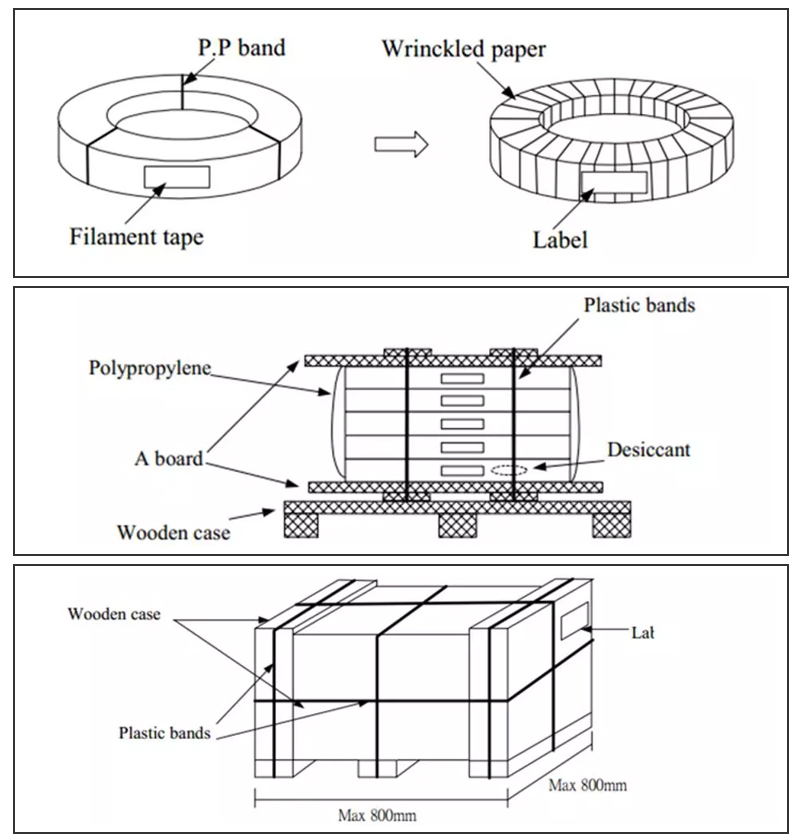

Packing Details : wooden pallet or iron square tube pallet
Delivery Details : 3-30 days after order.
